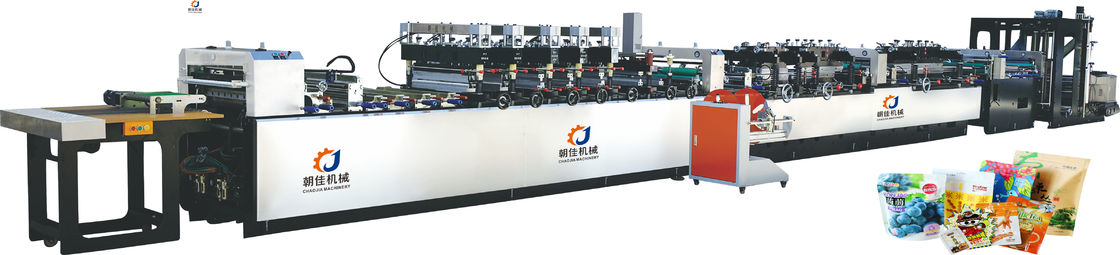

Stand Up Coffee bag/ Pouch Machine with zipper
Product Description:
The Three side sealing Stand up&zipper machine is a state-of-the-art packaging machine designed to produce high-quality stand up pouches with zipper closure. It is suitable for various industries such as food, chemical, pharmaceutical, hardware, and more.
Application
The Three side sealing Stand up&zipper machine is suitable for a wide range of applications. It can package various products, including dry goods, liquids, and powders. It is perfect for packaging food products such as snacks, coffee, and spices. It is also suitable for packaging chemicals, pharmaceuticals, hardware, and other similar products.
Specifications:
| Suitable material | Suitable for various heat sealing composit films |
| Tube size | Max width:1200mm,max diameter:Ф800mm |
| Film thickness | 0.045-0.15mm(single layer) |
| Bag making speed |
three side sealing: 250 segments/min, stand up bag: 160 segments/min, Three side seal with zipper: 160 segments/min, stand up bag with zipper: 140 segments/min Four side sealing bag: 140 segments/minute |
| Bag making width |
75-600mm Stand up& zipper bag width: 80mm-440mm |
| Bag making length |
three side sealing: 440mm (Longitudinal seal twice) Stand up&zipper bag: 120mm-220mm(double width) /240-440mm (single width) |
| Control system | PLC control system |
| Material traction mechanism | Servo motor system traction |
| Discharge system | Discharge shaft,tripod or K frame |
| Braking device | Constant tension encoder magnetic particle control system |
| Overall power | 40kw |
| Cooling water | About 15L/min |
| Air supply | 0.6Mpa |
| Power supply | Three phase 380V/50HZ |
| Weight | Apx5800kgs |
| Dimension | 16×2×2.2m(L×W×H) |
Our products are sold all over the world, you can rest assured.
