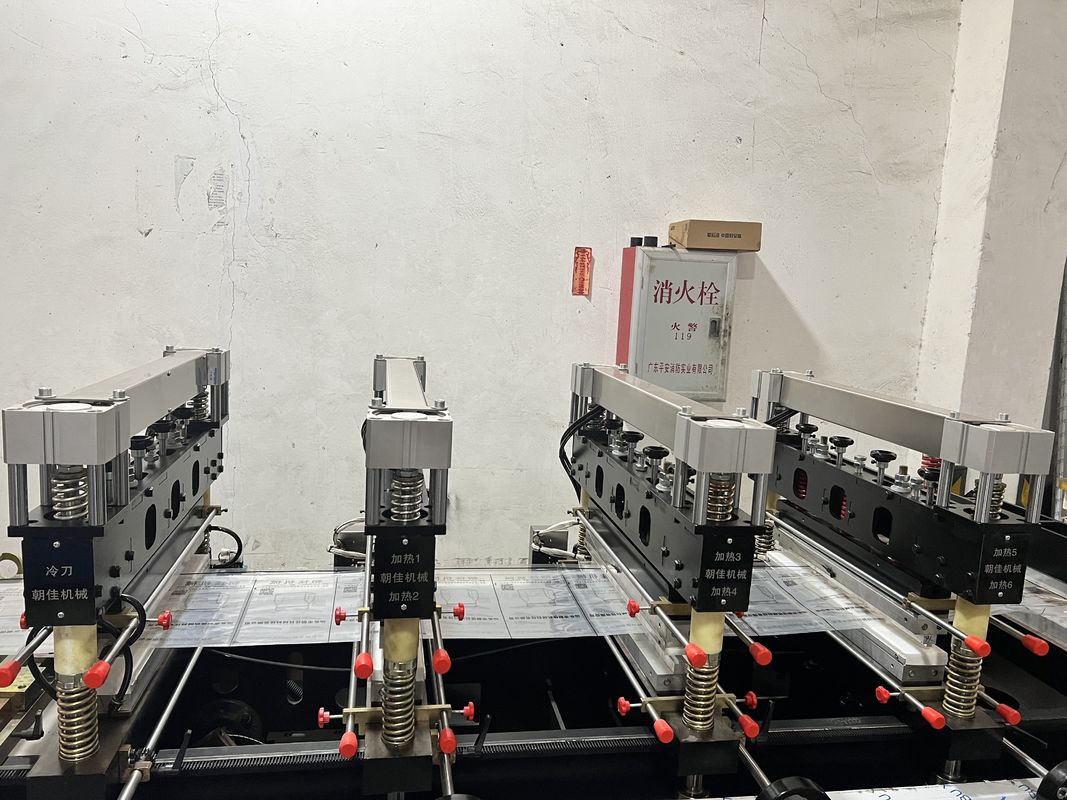

CJZD-500 Four side sealing pouch/bag making machine
Four side sealing pouch making machine is suitable for three-side bag sealing, bag opening and closing composite film bag making process, and can meet various production requirements of wide range of bag making specifications, high production efficiency and large batch size.
Specifications:
| Suitable material | Suitable for various heat sealing composit films |
| Tube size | Max width:1000mm,max diameter:Ф800mm |
| Film thickness | 0.045-0.15mm(single layer) |
| Bag making speed |
three side sealing: 250 segments/min, Three side zippered bag: 200 segments/min |
| Bag making width | 75-500mm |
| Bag making length | 440mm(longitudinal sealing twice) |
| Control system | PLC control system |
| Material traction mechanism | Servo motor system traction |
| Discharge system | Discharge shaft,tripod or K frame |
| Braking device | Constant tension encoder magnetic particle control system |
| Overall power | 40kw |
| Cooling water | About 15L/min |
| Air supply | 0.6Mpa |
| Power supply | Three phase 380V/50HZ |
| Weight | Apx5000kgs |
| Dimension | 13×2.×2.2m(L×W×H) |
Applications:
Three-side sealing with zipper bag has good barrier performance, moisture resistance, low heat sealing and high transparency, suitable for three-sided sealed bag products such as tea, candy, powder bag, snack food, nuts and seeds, rice, makeup bag, mask eye mask bag, medicine bag etc.with zipper function it has Strong sealing, moisture-proof, air-tight and UV proof.
Our products are sold all over the world, you can rest assured.
